Length 48mm Torque 547N.M One Way Roller Clutch Freewheel

  • 1
  • 2

Brand Name : CHAOYUE

Model Number : GC-D

Place of Origin : Shaanxi, China

MOQ : 1 pc

Price : USD 30.00 - 140.00 / pc

Payment Terms : T/T

Supply Ability : 1000 pcs per month

Delivery Time : 1 - 3 weeks

Packaging Details : Carton box or wooden case depends on the size of products

Inner Diameter : 12 - 70 mm

Outer Diameter : 47 - 190 mm

Thickness : 20 - 95 mm

Torque : 12 - 4370 N.m

Weight : 0.21 - 11.8 kg

Contact Now

GC-D AA One Way Roller Freewheel Clutch One Way Bearing



Type GC-D is a roller type freewheel non-bearing supported. Bearings are required to support axial and radial loads. Lubrication and sealing must also be provided by the installation. Standard lubrication is oil.



Standard install is the outer race fitting in the rabbet and screwed to the bond. The inner race is keyed to the shaft. The rabbet for install the outer race must be H7 tolerance, ensure a high axiality.



This series extensive used in machinery system of packing, printing, papermaking, weaving, chemical, medical, food and so on.

Length 48mm Torque 547N.M One Way Roller Clutch Freewheel

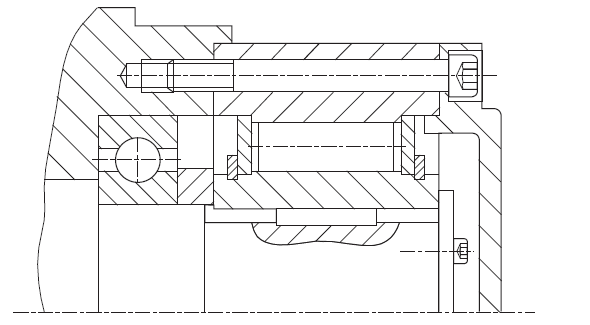

Mounting Example



Length 48mm Torque 547N.M One Way Roller Clutch Freewheel



Length 48mm Torque 547N.M One Way Roller Clutch Freewheel

Type Nominal Torque [N.m]

Overrunning Limiting Speed

[r / min]

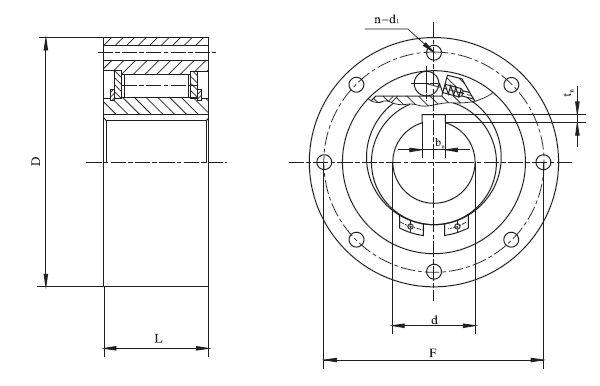

 　Dimension in Coutour [mm] Weight
[kg]
Inner Race Outer Race d[H7] D[h7] F L n - d1 bn x tn
GC-D1247 12 1550 3000 12 47 38 20 3 - 5.5 4 x 1.8 0.21
GC-D1555 42 1150 2700 15 55 45 30 3 - 5.5 5 x 2.3 0.44
GC-D2068 111 1000 1800 20 68 58 34 4 - 5.5 6 x 2.8 0.7
GC-D2590 215 850 1300 25 90 78 37 6 - 5.5 8 x 3.3 1.3
GC-D30100 380 750 1050 30 100 87 44 6 - 6.6 8 x 3.3 2
GC-D35110 547 650 975 35 110 96 48 6 - 6.6 10 x 3.3 2.6
GC-D40125 760 600 850 40 125 108 56 6 - 9.0 12 x 3.3 3.9
GC-D45130 855 525 750 45 130 112 56 8 - 9.0 14 x 3.8 4
GC-D50150 1634 475 650 50 150 132 63 8 - 9.0 14 x 3.8 6
GC-D55160 1995 425 600 55 160 138 67 8 - 11 16 x 4.3 7.2
GC-D60170 1660 400 550 60 170 150 78 10 - 11 18 x 4.4 9.2
GC-D70190 4370 325 450 70 190 165 95 10 - 11 20 x 4.9 11.8
