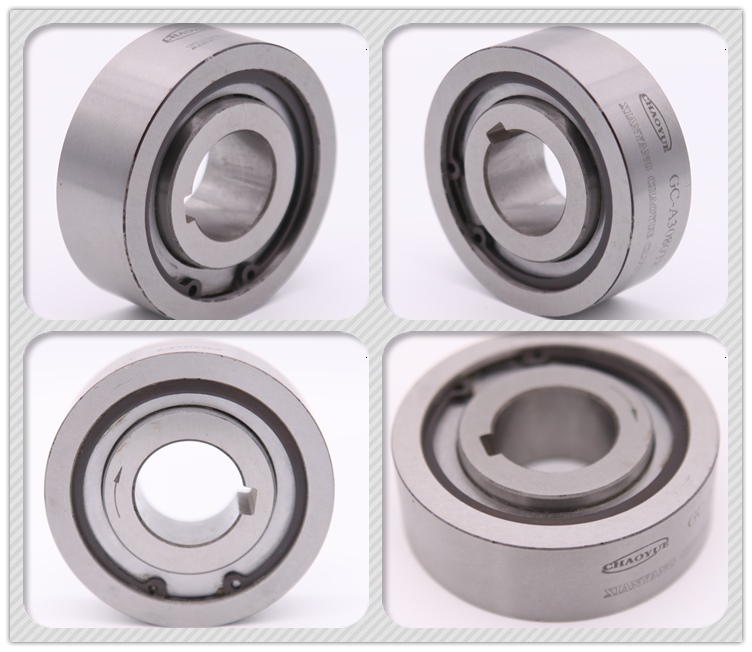

GC-A 360N.M 90mm OD One Way Roller Clutch For Medical Equipment

  • 1
  • 2
  • 3

Brand Name : CHAOYUE

Model Number : GC-A

Place of Origin : Shaanxi, China

MOQ : 1 pc

Price : USD 25.00 - 140.00 / pc

Payment Terms : T/T

Supply Ability : 500 pcs per month

Delivery Time : 1 - 3 weeks

Packaging Details : Carton box or wooden case depends on the size of products

product name : GC-A 0.11 - 12.10 kg Roller type overrunning one way clutch for packaging printing machinery

Outer Diameter : 37 - 170 mm

Thickness : 20 - 95 mm

Weight : 0.11 - 12.10 kg

Torque : 12 - 4320 N.m

Application : Printing, packaging, food, medical equipment

Contact Now

GC-A 0.11 - 12.10 kg Roller type overrunning one way clutch for packaging printing machinery



Roller one-way clutch is composed of outer ring, roller, spring and inner ring. The number of rollers is usually 6-8. During the working process, if the outer ring of the one-way clutch rotates counterclockwise relative to the inner ring, the roller moves to the big end in the open groove with the cam profile and compresses the spring. At this time, the one-way clutch will not lock up and allow the outer ring to rotate. That is to say, the one-way clutch shown in the figure allows its outer ring to rotate counterclockwise relative to the inner ring at any time. In other words, the inner ring is allowed to rotate clockwise relative to the outer ring.



GC-A 360N.M 90mm OD One Way Roller Clutch For Medical Equipment



Mounting Example

GC-A 360N.M 90mm OD One Way Roller Clutch For Medical Equipment

GC-A 360N.M 90mm OD One Way Roller Clutch For Medical Equipment



Type Nominal Torque [N.m] Overrunning Limiting Speed [r / min] Dimension in Coutour [mm] Weight
Inner Race Outer Race D [h7] L bw x tw d [H7] bn x tn
GC-A1237 12 1500 3100 37 20 4 x 2.5 12 4 x 1.8 0.11
GC-A1547 40 1100 2800 47 30 4 x 2.5 15 4 x 1.8 0.3
GC-A2062 105 1000 2400 62 34 5 x 3.0 20 5 x 2.3 0.55
GC-A2580 205 850 2000 80 37 5 x 3.0 25 5 x 2.3 0.98
GC-A2585 260 800 1800 85 28 5 x 3.0 25 8 x 3.0 0.9
GC-A3090 360 750 1700 90 44 6 x 3.5 30 6 x 2.8 1.5
GC-A3580 320 850 2000 80 37 5 x 3.0 35 5 x 2.3 0.9
GC-A35100 513 650 1400 100 48 6 x 3.5 35 6 x 2.8 2
GC-A40110 738 600 1200 110 56 8 x 4.0 40 8 x 3.3 2.8
GC-A45120 810 500 1000 120 56 10 x 5.0 45 10 x 3.3 3.3
GC-A50130 1530 450 850 130 63 10 x 5.0 50 10 x 3.3 4.2
GC-A55140 1890 420 700 140 67 12 x 5.0 55 12 x 3.3 5.2
GC-A60150 2520 400 580 150 78 12 x 5.0 60 12 x 3.3 6.8
GC-A70170 4320 300 450 170 92 14 x 5.5 70 14 x 3.8 12.1
